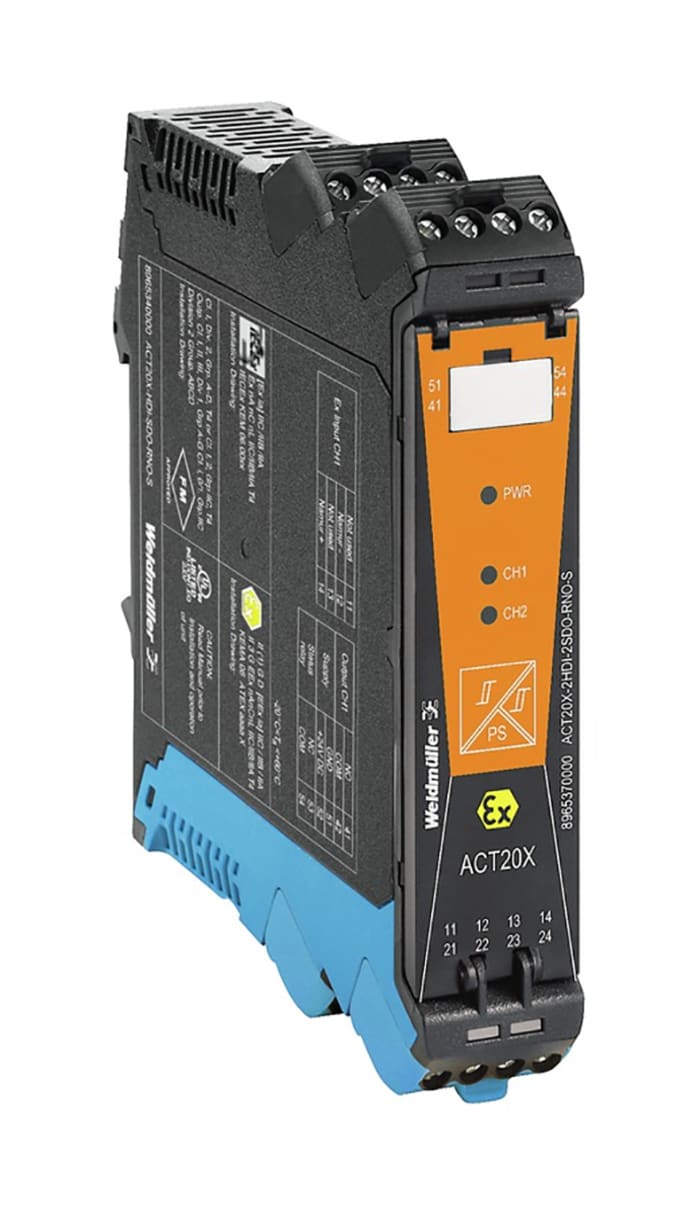

Weidmüller ACT20X Series Signal Conditioner, Current Input, Current Output, 19.2/31.2 V Supply, IECEx
Technical Document
Specifications
Brand
WeidmüllerProduct Type
Signal Conditioner
Input Signal Type
Current
Output Signal Type
Current
Input Range
4 to 20 mA
Isolation
2.6kV
Output Range
4 to 20 mA
Supply Voltage
19.2/31.2 V
Hazardous Area Certification
IECEx
Mount Type
DIN Rail
Minimum Operating Temperature
-20°C
Terminal Type
Screw
Maximum Operating Temperature
60°C
IP Rating
IP20
Signal Conditioner Type
Current-Supply Isolator
SIL Level
SIL 2
Standards/Approvals
NE 21, DIN EN 61326
Series
ACT20X
Number of Channels
1
Country of Origin
Denmark
Product details
ACT20X HAI-SAO/2HAI-2SAO-S Signal Isolating Converter
The ACT20X-HAI-SAO/2HAI-2SAO HART-protocol transparent current-supply isolating converters are capable of transmitting 4-20 mA signals from Ex zone 0 into the safe zone. External sensors can be supplied with power through the device.
DIN Rail mounting
22.5 mm width
Alarm contacts in the event of a malfunction
1 or 2 channel options available
Screw connection, removable terminal block
IP20 protection
