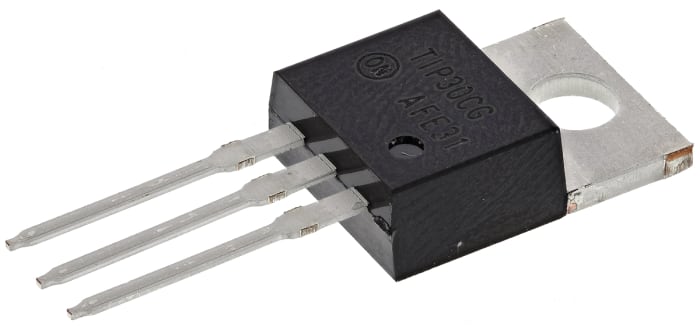

onsemi TIP30CG PNP Transistor, -1 A, -100 V, 3-Pin TO-220AB
Technical Document
Specifications
Brand
onsemiTransistor Type
PNP
Maximum DC Collector Current
-1 A
Maximum Collector Emitter Voltage
-100 V
Package Type
TO-220AB
Mounting Type
Through Hole
Maximum Power Dissipation
30 W
Minimum DC Current Gain
15
Transistor Configuration
Single
Maximum Collector Base Voltage
100 V
Maximum Emitter Base Voltage
5 V
Maximum Operating Frequency
1 MHz
Pin Count
3
Number of Elements per Chip
1
Dimensions
10.28 x 4.82 x 15.75mm
Maximum Operating Temperature
+150 °C
Product details
General Purpose PNP Transistors, Up to 1A, ON Semiconductor
