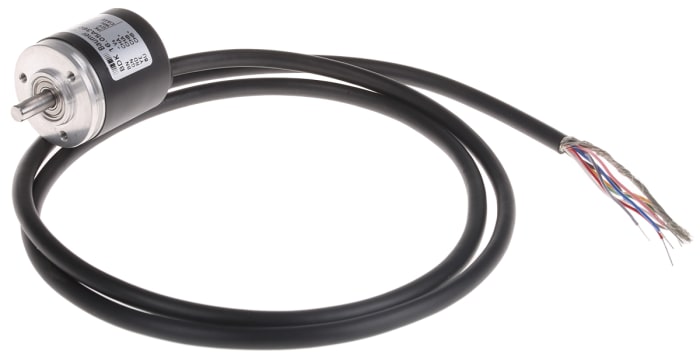

Hengstler Incremental Encoder, 360 ppr, TTL Signal, Solid Type

RS Stock No.: 291-4377Brand: HengstlerManufacturers Part No.: 0531598
brand-logo
View all in Motion Control Sensors

Technical Document

Specifications

Brand

Hengstler

Encoder Technology

Incremental

Pulses Per Revolution

360

Maximum Revolutions

6000rpm

Output Signal Type

TTL

Shaft Type

Solid

Supply Voltage

5 V dc

Steps Per Revolution

360Steps

IP Rating

IP50

Overall Height

41.5mm

Minimum Operating Temperature

-10°C

Maximum Operating Temperature

+70°C

Switching Frequency

300 kHz
