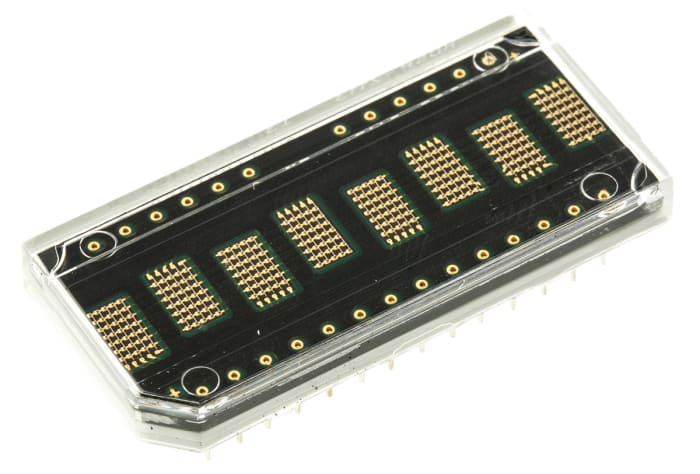

Broadcom 8 Dot Matrix LED Display Green 7.5mcd 4.8 mm

RS Stock No.: 189-4796Brand: BroadcomManufacturers Part No.: HDSP-2113
brand-logo
View all in LED Displays

Technical Document

Specifications

Brand

Broadcom

Product Type

LED Display

Display Type

Dot Matrix

Number of Characters

8

LED Colour

Green

Number of Segments

5

Dominant Wavelength

574 nm

Character Width

2.7mm

Character Height

4.8mm

Mount Type

Through Hole

External Width

42.6mm

External Height

19.6mm

External Depth

5.3mm

Minimum Operating Temperature

-45°C

Maximum Operating Temperature

85°C

Luminous Intensity

7.5mcd

Colour of Face

Black

Standards/Approvals

UL 1577, RoHS, CSA, IEC/EN/DIN EN 60747-5-5

Forward Voltage

5.5V

Series

HDSP-210x

Forward Current

300mA

Product details

8 Digit Alphanumeric Display, Avago HDSP-210x, HDSP-211x, HDSP-250x

8-digit, 5x7 dot matrix, programmable 5mm high LED displays in standard 28-pin d.i.l. packages.

X stackable
128 ASCII character set
16 user-definable characters
Programmable functions
Multi-level dimming and blanking
Microprocessor bus interface

Applications include: industrial instrumentation, test equipment, telecommunications, computer peripherals, portable data entry devices and medical equipment
