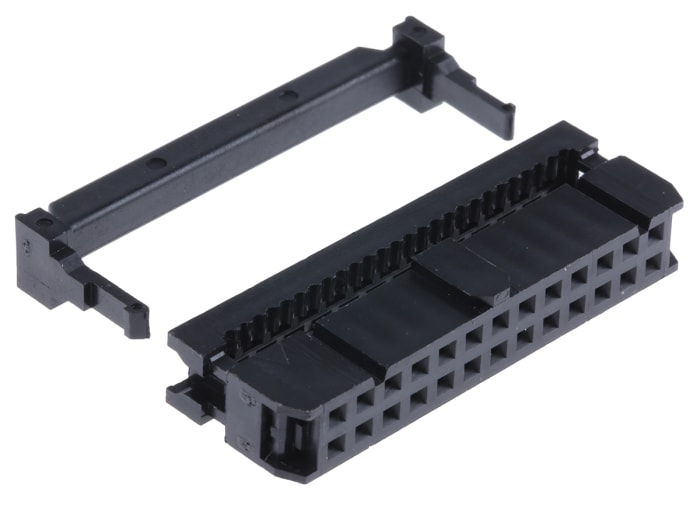

Hirose 26-Way IDC Connector Socket for Cable Mount, 2-Row
Technical Document
Specifications
Brand
HiroseNumber Of Contacts
26
Number Of Rows
2
Gender
Female
Pitch
2.54mm
Mounting Type
Cable Mount
Body Orientation
Right Angle
Termination Method
IDC
Current Rating
1A
Contact Plating
Gold
Series
HIF3B
Minimum Operating Temperature
-55.0°C
Maximum Operating Temperature
85.0°C
Voltage Rating
200.0 V ac
Housing Material
PBT
Contact Material
Beryllium Copper
Country of Origin
Japan
Product details
Hirose 2.54mm HIF3B Series MIL Standard IDC Ribbon Cable Socket Connectors with Mis-Insertion Guides
HIF3B series 2.54mm IDC ribbon cable socket connectors made from black UL94V-0 PBT with a double row contact alignment. These HIF3B series IDC ribbon cable sockets are MIL standard compliant (apart from 6 and 10 pole versions), have a mis-insertion mechanism comprising of polarizing guides and polarizing keyways along with a strain relief and accept UL2651 AWG 28 flat cable.
For polarization guide and keyway combinations please refer to manufacturers datasheet
Hirose 2.54mm Ribbon Cable Connectors
